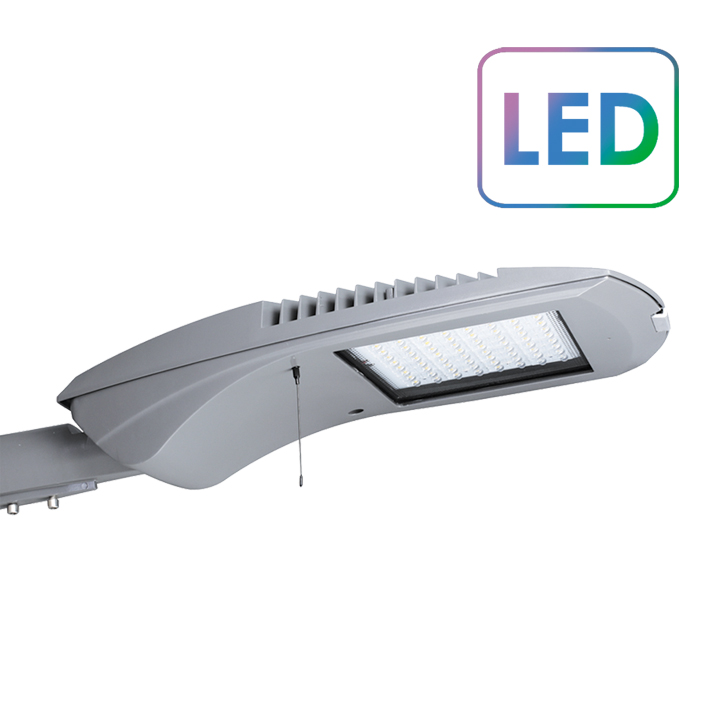

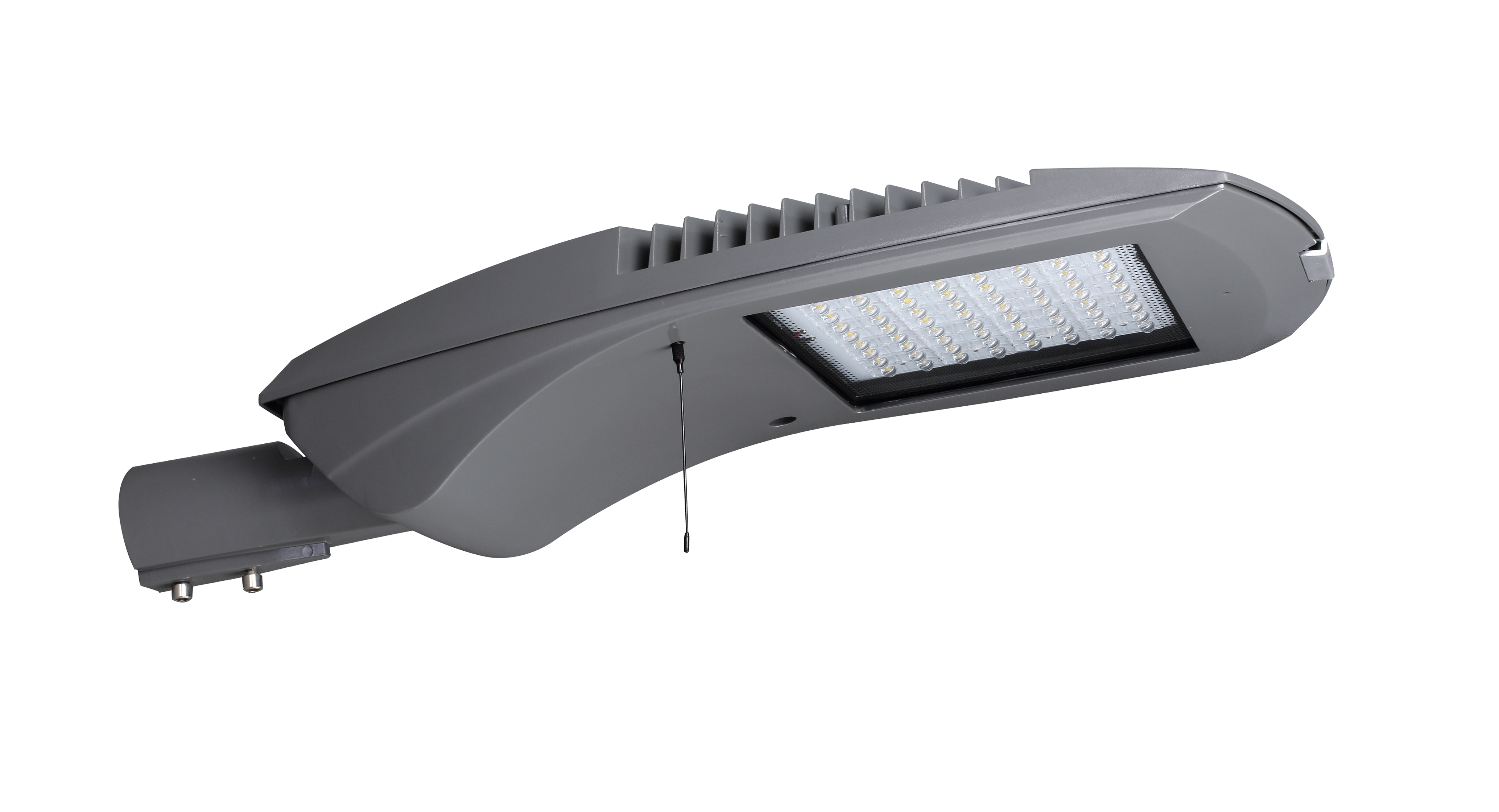

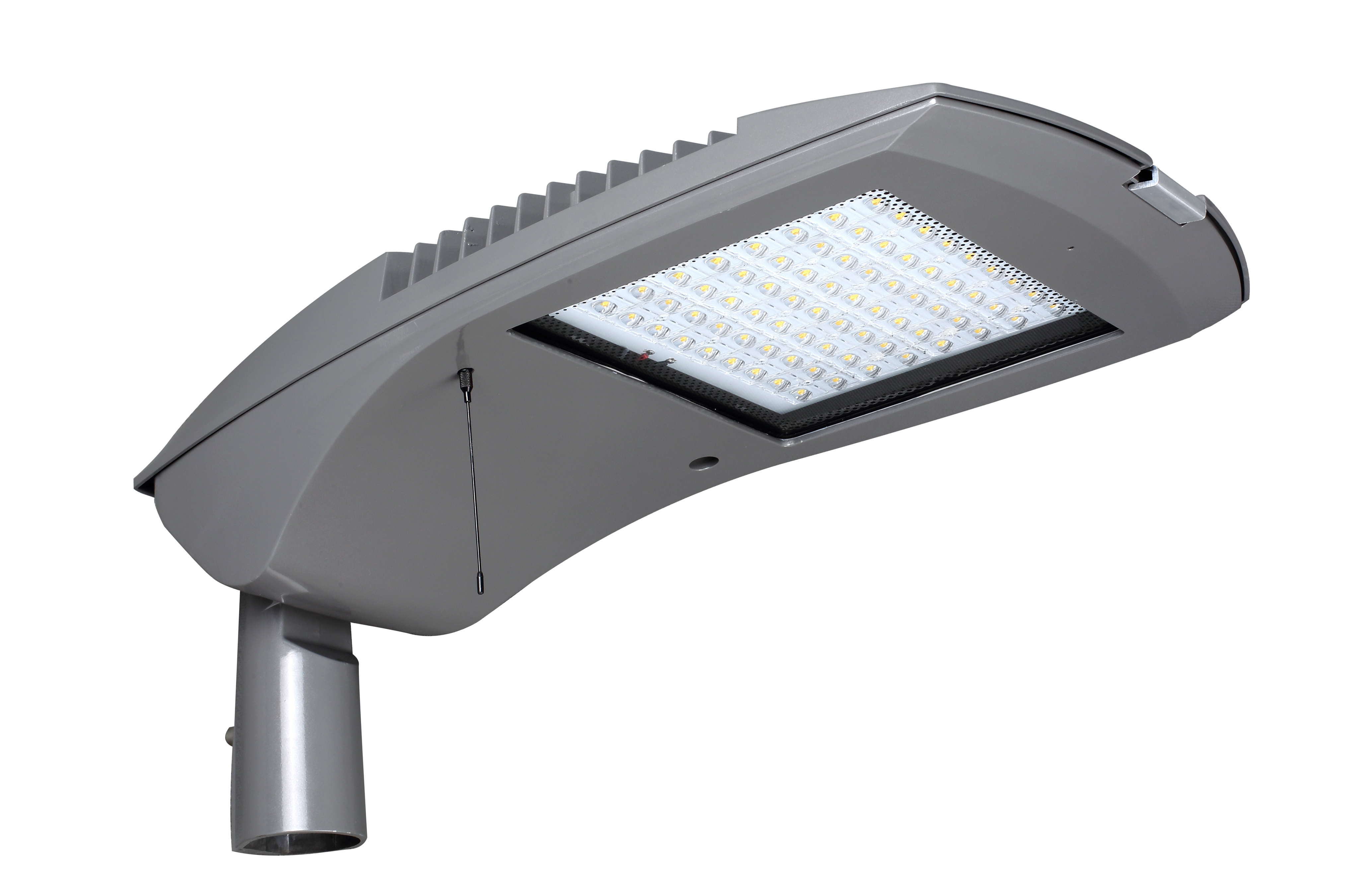

Viking DKS 753

DKS 753

Benefits:

Ensure high energy efficiency in combination with moderate initial investments in infrastructure development
Modest modern design of Viking luminaire fits well in diversified and demanding city environment. Selection of different size housings in combination with a range of high-performance optics and light colour temperatures satisfies all demands for city street lighting.
The highest quality LED components of proven manufacturers and reliable technical design ensures high-quality lighting and long lifetime.

Downloads:

Photometric IES

Description

Order code	Description	LED current	System Initial luminous flux, lm	Power W	Efficacy Lm/W	Control method*	Weght kg
600151421053	DKS 753 LED101 – 92 W 740 I 40-60 NB1	0,8	10120	92	111	Line swith, Lumistep	9,8
600151421054	DKS 753 LED101 – 92 W 740 I 40-60 NB2	0,8	10120	92	111	Line swith, Lumistep	9,8
600151421055	DKS 753 LED093 – 92 W 730 I 40-60 NB1	0,8	9360	92	103	Line swith, Lumistep	9,8
600151421056	DKS 753 LED093 – 92 W 730 I 40-60 NB2	0,8	9360	92	103	Line swith, Lumistep	9,8
600151421057	DKS 753 LED104 – 92 W 757 I 40-60 ASL	0,8	10350	92	118	Line swith, Lumistep	9,8
600151421058	DKS 753 LED104 – 92 W 757 I 40-60 ASR	0,8	10350	92	118	Line swith, Lumistep	9,8
600151421059	DKS 753 LED120 – 106 W 740 I 40-60 NB1	0,7	12000	106	113	Line swith, Lumistep	9,8
600151421060	DKS 753 LED120 – 106 W 740 I 40-60 NB2	0,7	12000	106	113	Line swith, Lumistep	9,8
600151421061	DKS 753 LED111 – 106 W 730 I 40-60 NB1	0,7	11120	106	105	Line swith, Lumistep	9,8
600151421062	DKS 753 LED111 – 106 W 730 I 40-60 NB2	0,7	11120	106	105	Line swith, Lumistep	9,8
600151421063	DKS 753 LED150 – 128 W 740 I 40-60 NB1	0,7	15000	128	116	Line swith, Lumistep	9,8
600151421064	DKS 753 LED150 – 128 W 740 I 40-60 NB2	0,7	15000	128	116	Line swith, Lumistep	9,8
600151421065	DKS 753 LED137 – 128 W 730 I 40-60 NB1	0,7	13700	128	107	Line swith, Lumistep	9,8
600151421066	DKS 753 LED137 – 128 W 730 I 40-60 NB2	0,7	13700	128	107	Line swith, Lumistep	9,8

Type	VIKING DKS 753
Light source	LED module
Driver	Driver included
Mains voltage index	230 – 240 V / 50 – 60 Hz
Power	92-128W depending on type
Luminaire efficacy	>0,95
Luminous flux	5000-16700 lm depending on type
Color rendering index	75 – 80
Light Color	3000 – 5700К
Surge protection	6 kV standard 10kV optional
Maintenance of lumen output - L90B10	100000 hours

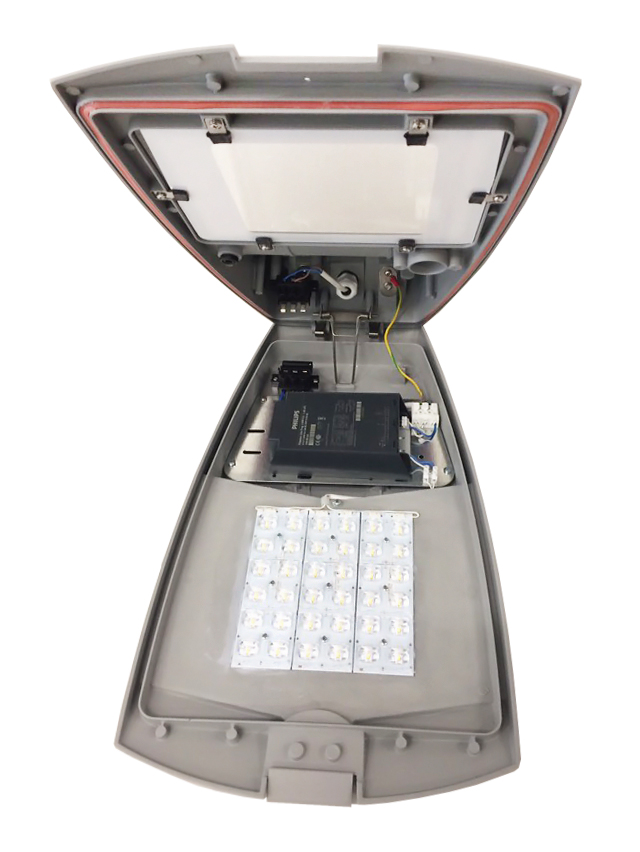

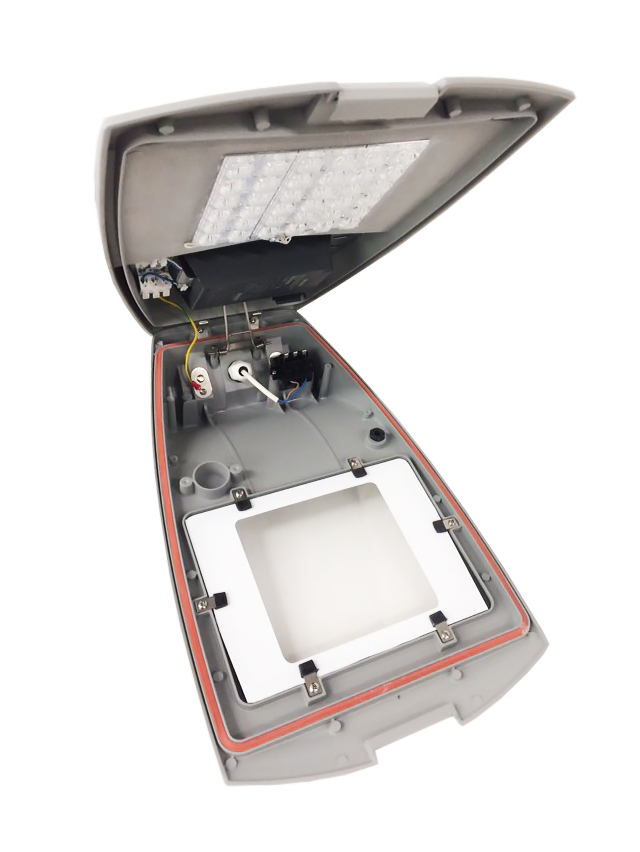

Maintenance	Opening without tools, safety switch disconnects power on opening – Safe Maintenance Technology (SMT)
Optic	Wide beam, Narrow beam, Assymetric
Optical cover	Glass, flat as standard, PC optional

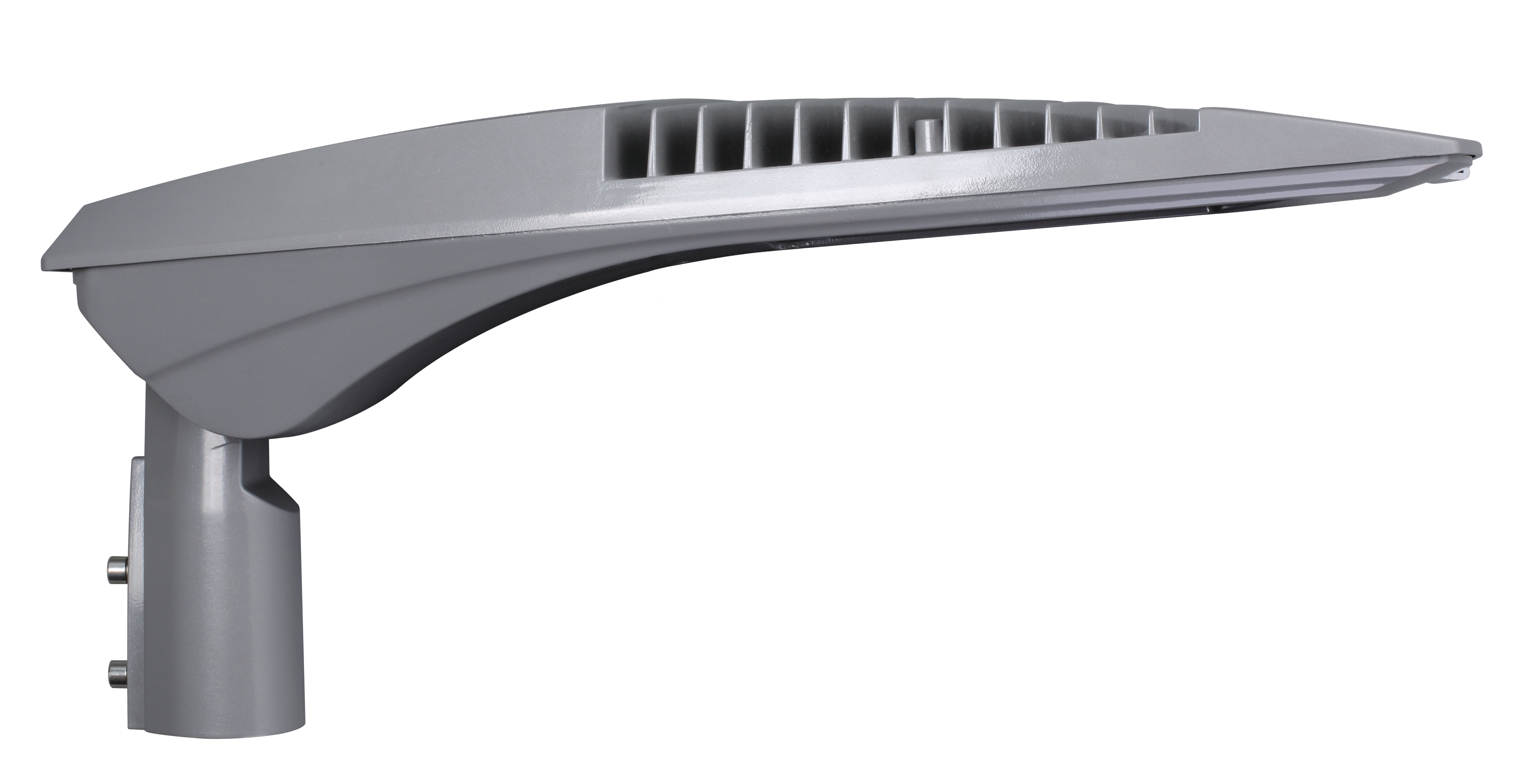

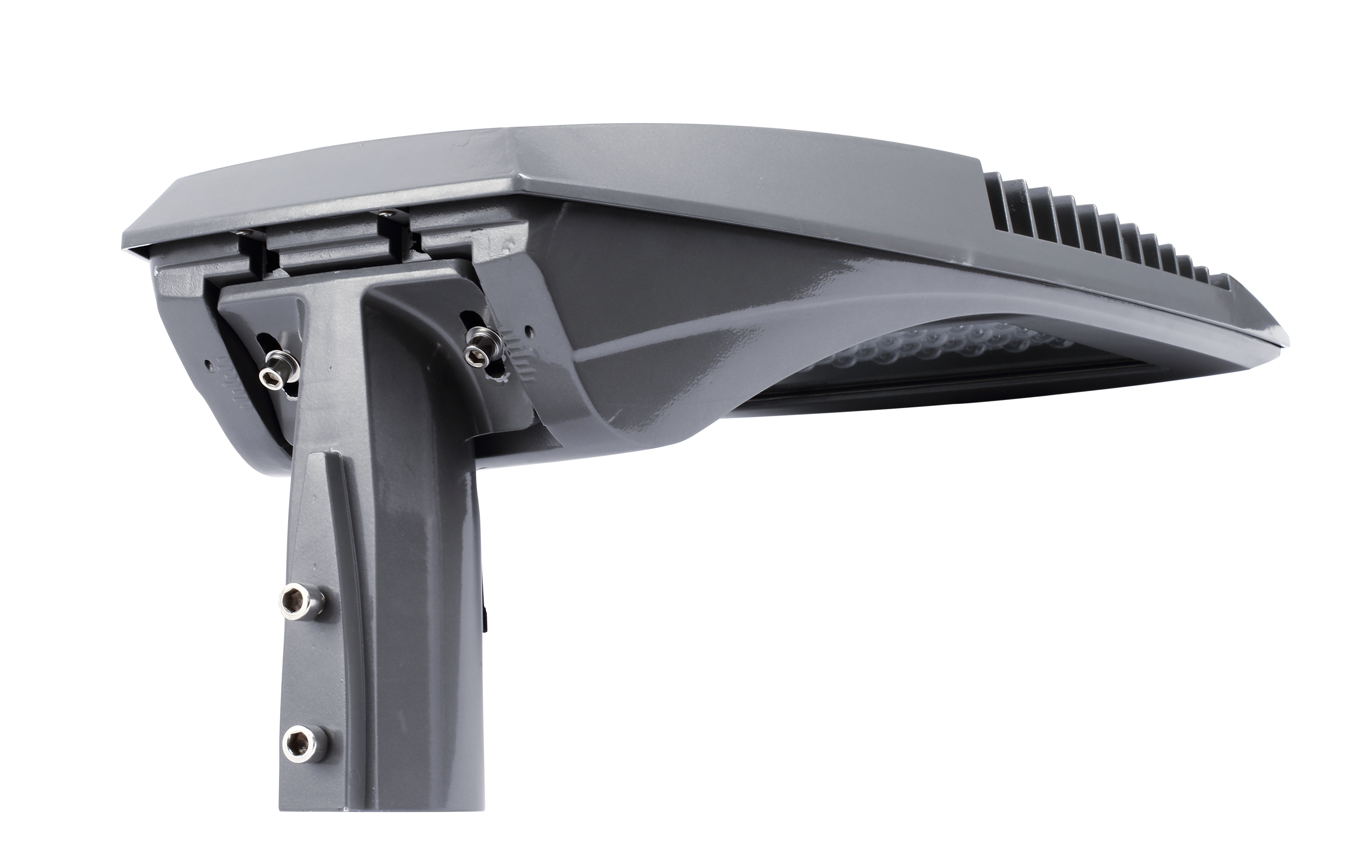

Body material	Housing: high-pressure, die-cast aluminium Side-entry mounting: lateral entry O40/60mm
Installation	Recommended mounting height: 8-12 m
Color	RAL 7035
Impact resistance	IK08 as standard, IK09 optiona
Ingress protection	IP66
Electrical safety	Class I, or II
Application	• Urban road and streets • Residential roads and paths • Pedestrian crossroads
