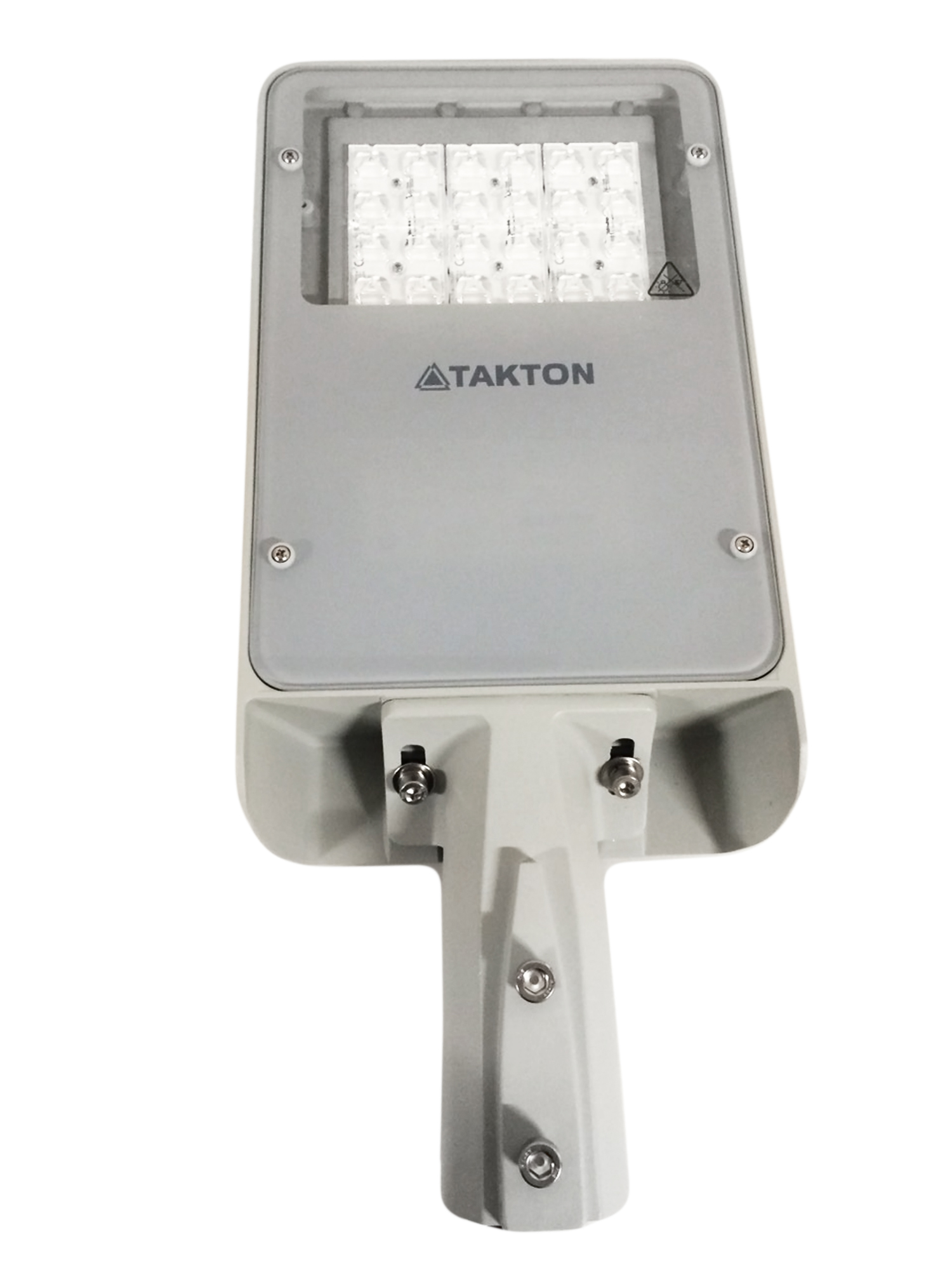

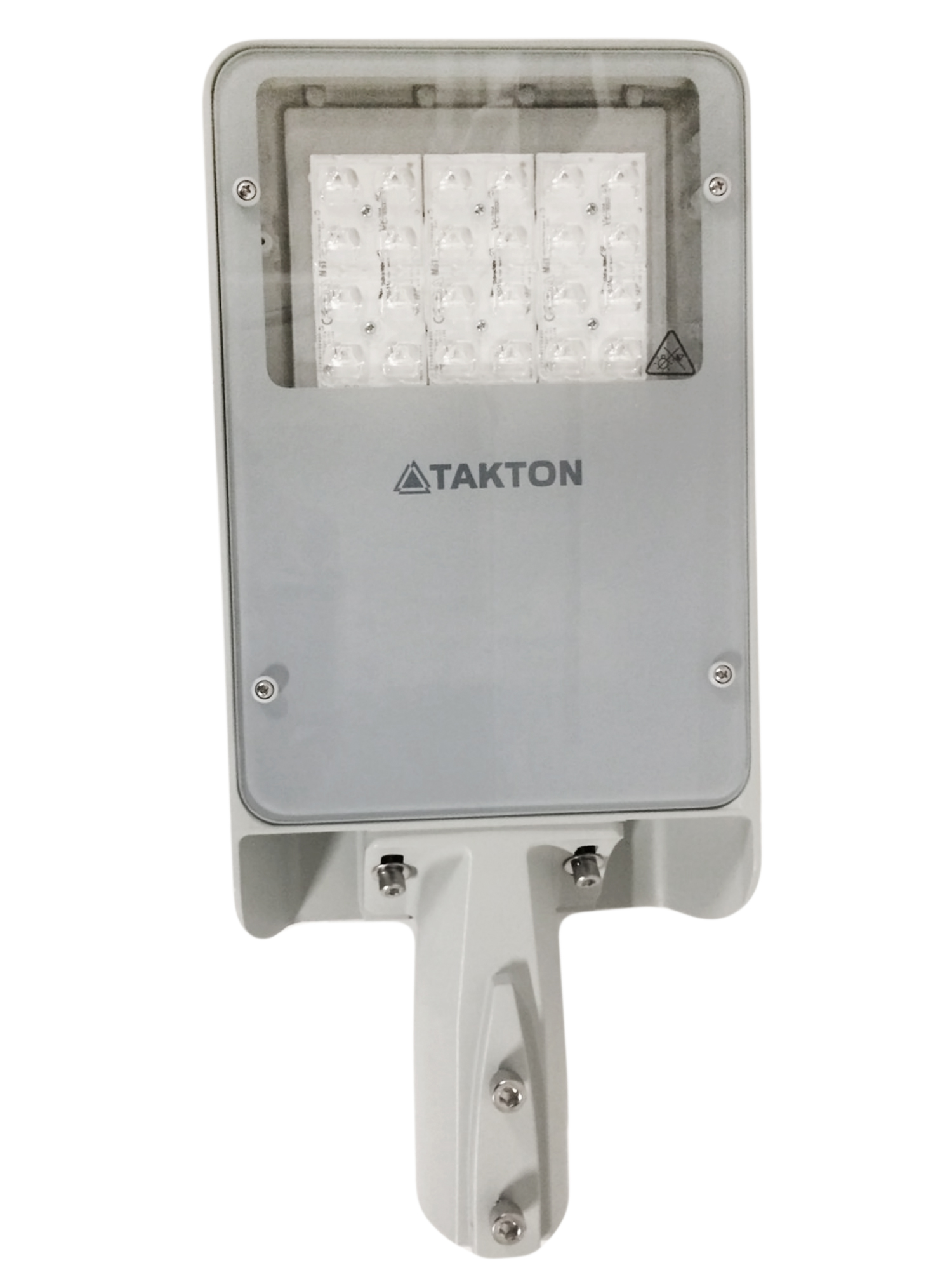

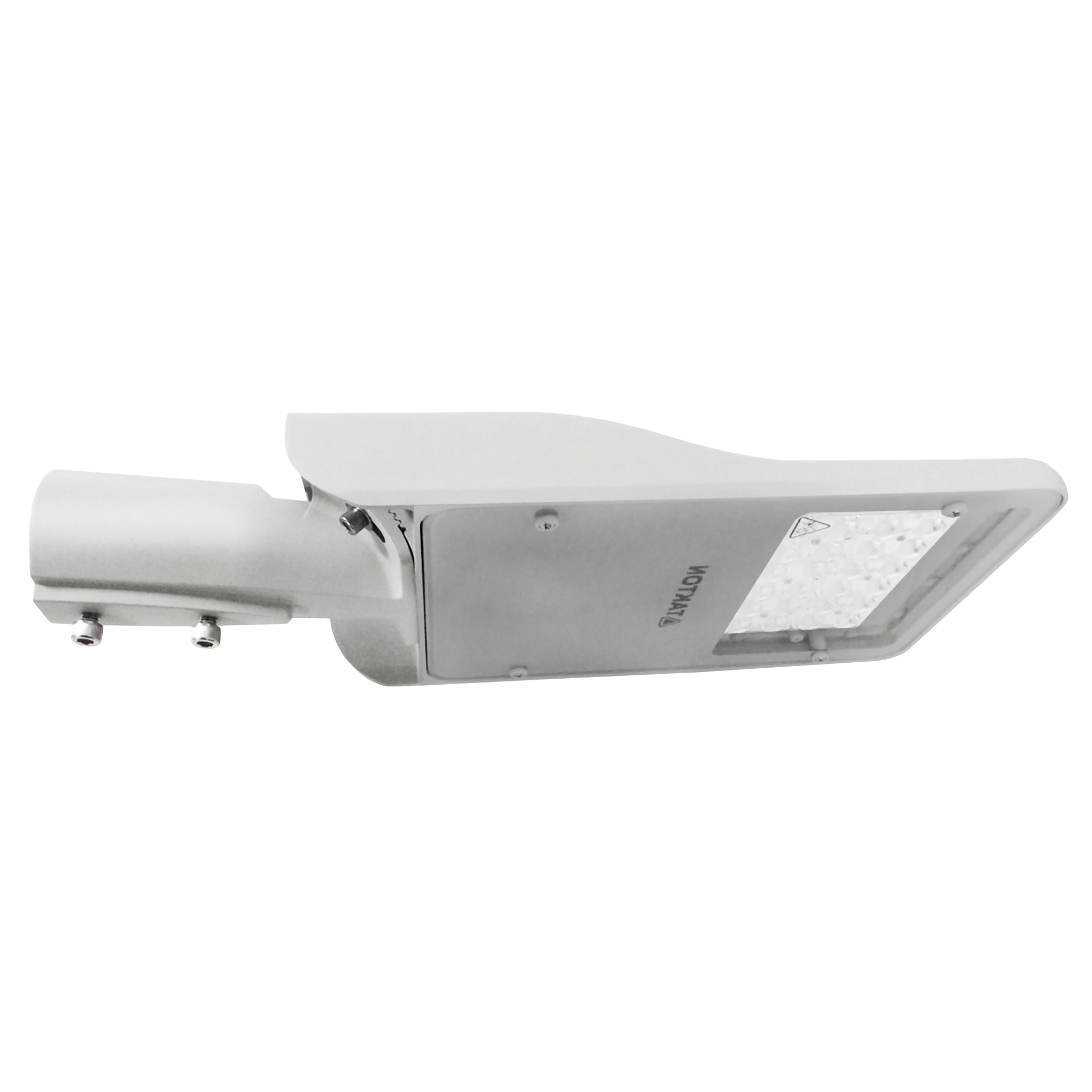

MALMÖ MINI

220 1 CE F

DKS 674



Benefits:

  • Long life ceramic package LED chips by OSRAM – CCT 3000/4000/5700K @ CRI >70 , service lifetime >100000hrs ;
  • Modest modern design of MALMÖ luminaire fits well in diversified and demanding city environment. Selection of different size housings in combination with a range of high-performance optics and light color temperatures satisfies all demands for city street lighting.
  • The highest quality LED components of proven manufacturers and reliable technical design ensures high-quality lighting and long lifetime.
  • selection of light distributions for roads and area lighting – low ageing PMMA lenses by LEDIL

Downloads:

DIAL

Photometric IES
DIAL

Photometric LDT
pdf-icon

Datasheet PDF
pdf-icon

Recomendations
pdf-icon

Mounting instruction

Categories: , Tags: , ,

Description

Code Type Power
consumption, W		 Flux, lm Efficacy,
lm/W		 Weight,
kg
600151401014 DKS674 LED023 18W 740 I WB IC0 18 2343 130 4,5
600151401015 DKS674 LED023 18W 740 I WB1 IC0 18 2343 130 4,5
600151401046 DKS674 LED023 18W 740 I NB2 IC0 18 2343 130 4,5
600151401016 DKS674 LED021 18W 730 I WB IC0 18 2210 123 4,5
600151401020 DKS674 LED021 18W 730 I WB1 IC0 18 2210 123 4,5
600151401021 DKS674 LED035 27W 740 I WB IC0 27 3504 130 4,5
600151401022 DKS674 LED035 27W 740 I WB1 IC0 27 3504 130 4,5
600151401047 DKS674 LED035 27W 740 I NB2 IC0 27 3504 130 4,5
600151401023 DKS674 LED035 27W 740 I NB1 IC0 27 3504 130 4,5
600151401024 DKS674 LED032 27W 730 I WB IC0 27 3300 122 4,5
600151401025 DKS674 LED032 27W 730 I WB1 IC0 27 3300 122 4,5
600151401026 DKS674 LED032 27W 730 I NB1 IC0 27 3300 122 4,5
600151401027 DKS674 LED042 36W 730 I NB1 IC0 36 4224 117 4,5
600151401002 DKS674 LED046 36W 740 I WB IC0 36 4661 129 4,5
600151401028 DKS674 LED046 36W 740 I WB1 IC0 36 4661 129 4,5
600151401029 DKS674 LED046 36W 740 I NB1 IC0 36 4661 129 4,5
600151401048 DKS674 LED046 36W 740 I NB2 IC0 36 4661 129 4,5
600151401030 DKS674 LED042 36W 730 I NB2 IC0 36 4400 122 4,5
600151401012 DKS674 LED042 36W 730 I WB1 IC0 36 4400 122 4,5
600151401039 DKS674 LED042 36W 730 I WB IC0 36 4400 122 4,5
600151401031 DKS674 LED069 54W 740 I WB IC0 54 6892 128 4,5
600151401032 DKS674 LED069 54W 740 I NB1 IC0 54 6892 128 4,5
600151401049 DKS674 LED069 54W 740 I NB2 IC0 54 6892 128 4,5
600151401034 DKS674 LED063 54W 730 I WB IC0 54 6580 122 4,5
600151401035 DKS674 LED063 54W 730 I NB1 IC0 54 6580 122 4,5
600151401036 DKS674 LED063 54W 730 I NB2 IC0 54 6580 122 4,5
600151401050 DKS674 LED069 54W 740 I WB1 IC0 54 6892 128 4,5
600151401051 DKS674 LED069 54W 757 I ASR IC0 54 6892 128 4,5
600151401052 DKS674 LED063 54W 730 I WB1 IC0 54 6243 116 4,5

Additional information

Product type

MALMÖ MINI DKS 674
Light source

Modules with OSRAM long life ceramic package LED chips with silicone lens diodes
Type of optic

Low ageing PMMA lenses by LEDIL
Light distribution

Asymmetric for roads, areas, walkways, pedestrian crossings and other types on request
CCT

3000K, 4000K, 5700K
Color rendering index, CRI

>70
Photobiological safety

RG1
Initial color shift, SDCM

<5
LOR

up to 0,94
Luminaire lumen output range, lm

2000….6000 Lm depending on type

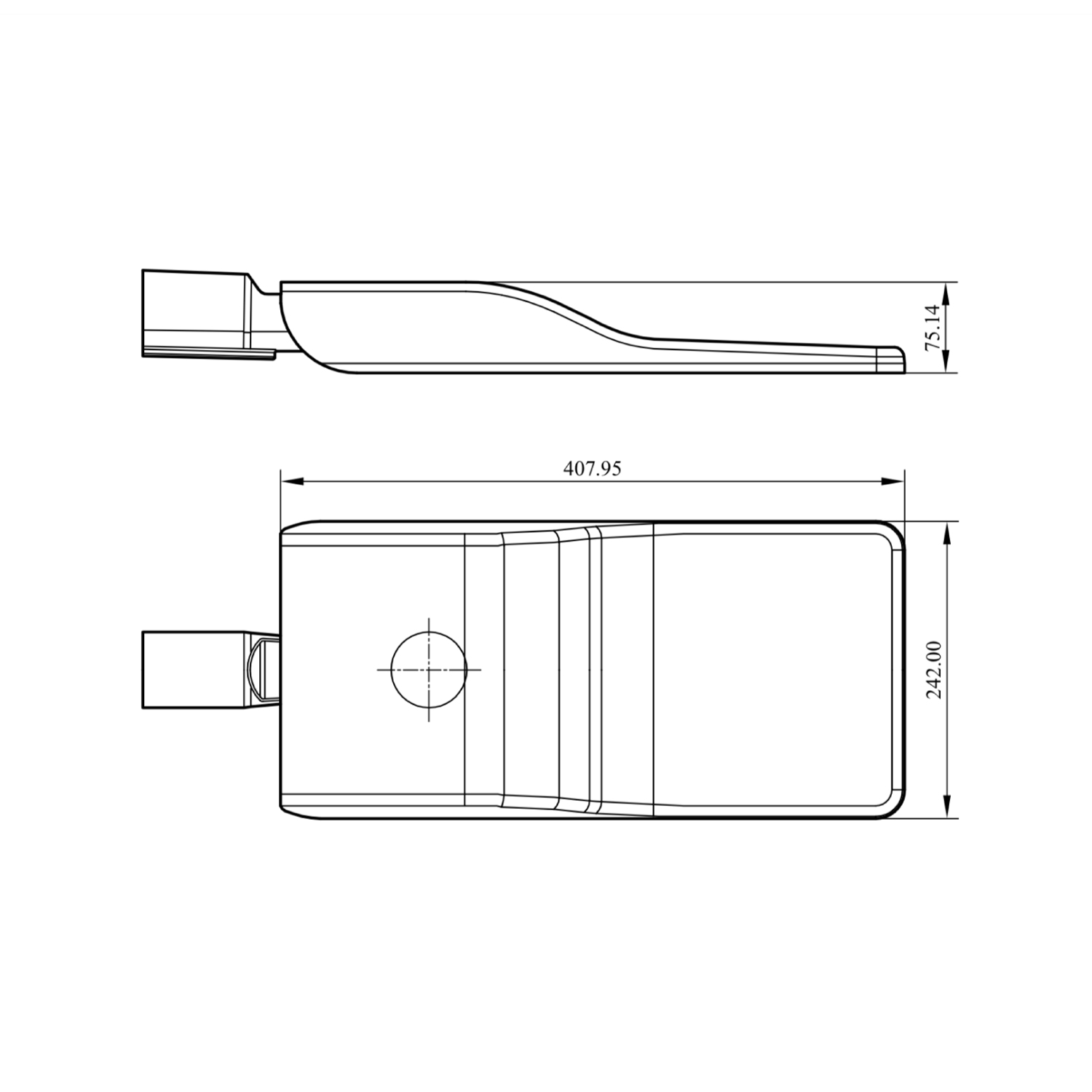

Dimensions LxWxH

530(410)x240x76
Effective protected area

-0.02
Housing colour

RAL 7035
Housing material

Housing: high-pressure, die-cast aluminium powder coated, no plastic parts
Impact resistance

IK08
Ingress protection

IP66
Windage area

no more 0,099sq.m above/below and 0,031sq.m side position
Installation options

Post top or side entry installation 40-60mm with tilt regulation 0/5/10/15 dgr
Optical cover

Extra clear toughened flat glass
Driver efficiency nominal

up to 0.92
Driver failure ratio

<10% at 50000 or 100000 hours depends on type
Driver type

Built in PHILIPS Xitanium Outdoor driver
Nominal input voltage range

202..254 or 198…264, depends on type
Input Frequency

50-60 Hz
LED current ripple %

<(4-30) depends on type
Mains voltage index

230 – 240 V / 50 – 60 Hz
Electrical isolation class IEC

Safety class I as a standard, II on request
Power factor nominal

up to 0.98
Power range

18-54W depending on type
Surge protection

4/6 kV standard 10kV optional
Electrical connection

0.4m cable as standard or 5….15m cable as other options on request
Maintenance

Opening with screw, LED modules are non-replaceable and can be replaced by manufacturer only
Maintenance of lumen output

100000 hours – L90B10
Operating temperature range

-40…+35 C, typical for exact values
Application

• Urban road and streets • Residential roads and paths • Pedestrian crossroad
CE mark

CE marked
ROHS

ROHS complaint
