MALMÖ MIDI

220 1 CE F

DKS 675



Benefits:

  • Long life ceramic package LED chips by OSRAM – CCT 3000/4000/5700K @ CRI >70 , service lifetime >100000hrs ;
  • Modest modern design of MALMÖ luminaire fits well in diversified and demanding city environment. Selection of different size housings in combination with a range of high-performance optics and light colour temperatures satisfies all demands for city street lighting.
  • The highest quality LED components of proven manufacturers and reliable technical design ensures high-quality lighting and long lifetime.
  • selection of light distributions for roads and area lighting – low ageing PMMA lenses by LEDIL



Downloads:

DIAL

Photometric IES
DIAL

Photometric LDT
pdf-icon

Datasheet PDF
pdf-icon

Recomendations
pdf-icon

Mounting instruction

Categories: , Tags: , ,

Description

Code Type Power
consumption, W		 Flux, lm Efficacy,
lm/W		 Weight,
kg
600151401042 DKS675 LED093 81W 730 I NB2 IC0 81 9770 121 6,5
600151401041 DKS675 LED093 81W 730 I NB1 IC0 81 9770 121 6,5
600151401054 DKS675 LED093 81W 730 I WB1 IC0 81 9770 121 6,5
600151401040 DKS675 LED093 81W 730 I WB IC0 81 9770 121 6,5
600151401018 DKS675 LED103 81W 740 I NB2 IC0 81 10300 127 6,5
600151401038 DKS675 LED103 81W 740 I NB1 IC0 81 10300 127 6,5
600151401053 DKS675 LED103 81W 740 I WB1 IC0 81 10300 127 6,5
600151401037 DKS675 LED103 81W 740 I WB IC0 81 10300 127 6,5
600151401043 DKS675 LED103 81W 757 I ASR IC0 81 10300 127 6,5
600151401019 DKS675 LED136 107W 740 I NB2 IC0 107 13594 127 6,5
600151401056 DKS675 LED136 107W 740 I NB1 IC0 107 13594 127 6,5
600151401057 DKS675 LED136 107W 740 I WB1 IC0 107 13594 127 6,5
600151401058 DKS675 LED136 107W 740 I WB IC0 107 13594 127 6,5
600151401059 DKS675 LED136 107W 757 I ASR IC0 107 13594 127 6,5
600151401060 DKS675 LED123 107W 730 I NB2 IC0 107 12800 120 6,5
600151401061 DKS675 LED123 107W 730 I NB1 IC0 107 12800 120 6,5
600151401062 DKS675 LED123 107W 730 I WB1 IC0 107 12800 120 6,5
600151401063 DKS675 LED123 107W 730 I WB IC0 107 12800 120 6,5

Additional information

Product type

MALMÖ MIDI DKS 675

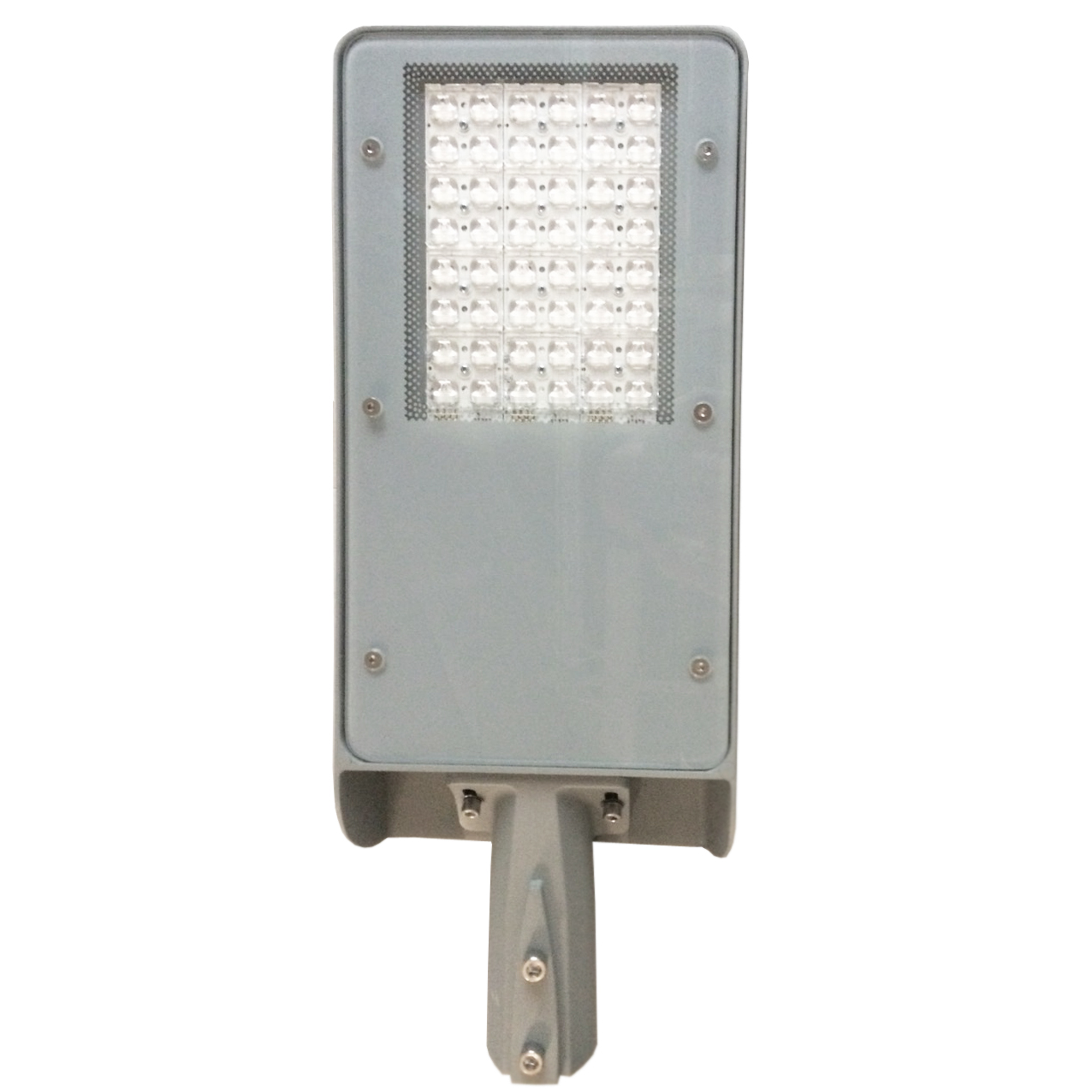

Light source

Modules with OSRAM long life ceramic package LED chips with silicone lens diodes
Type of optic

Low ageing PMMA lenses by LEDIL
Light distribution

Asymmetric for roads, areas, walkways, pedestrian crossings and other types on request
CCT

3000K, 4000K, 5700K
Color rendering index, CRI

>70
Photobiological safety

RG1
Initial color shift, SDCM

<5
LOR

up to 0,94
Luminaire lumen output range, lm

9300….12300 lm depending on type

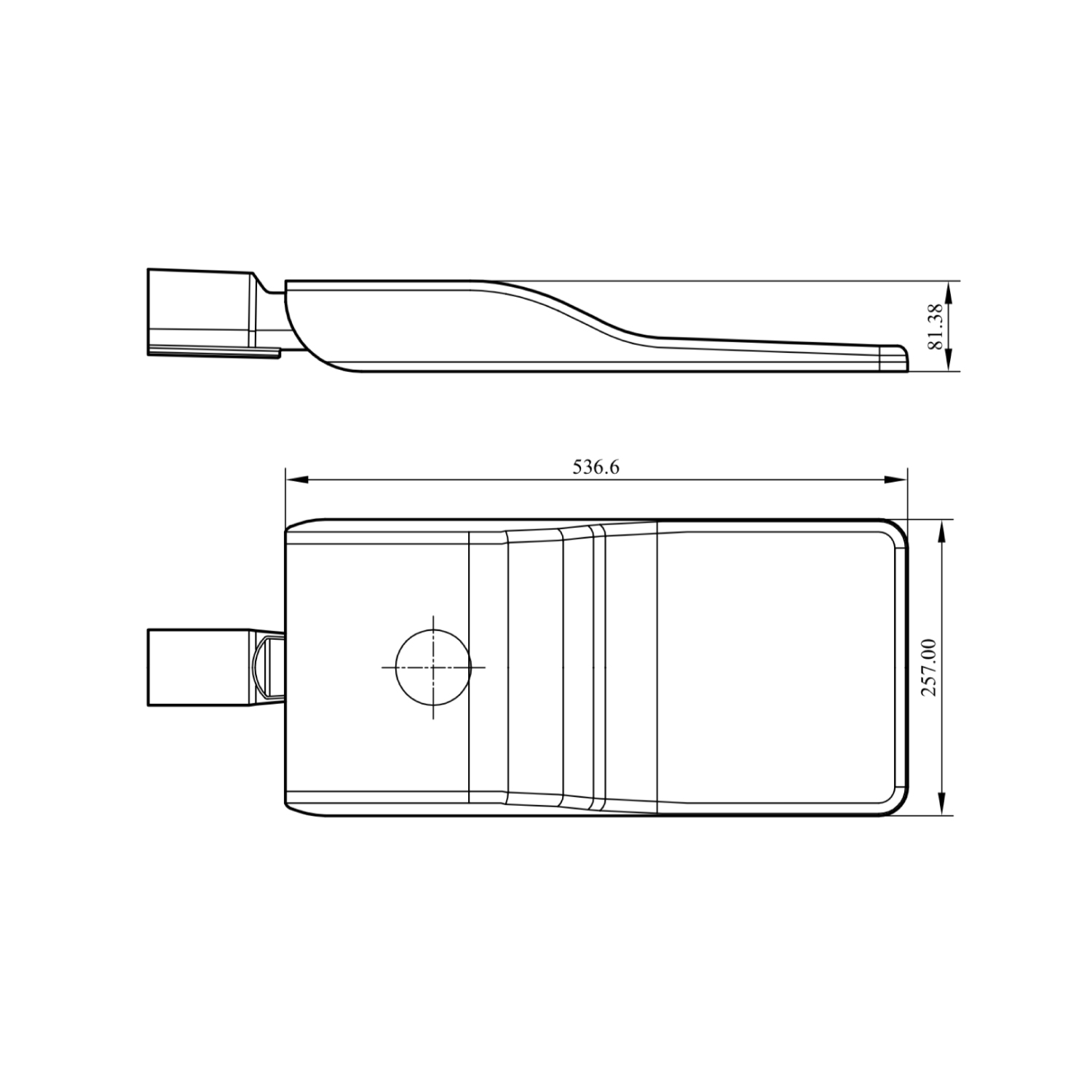

Dimensions LxWxH

537x257x82
Effective protected area

-0.02
Housing colour

RAL 7035

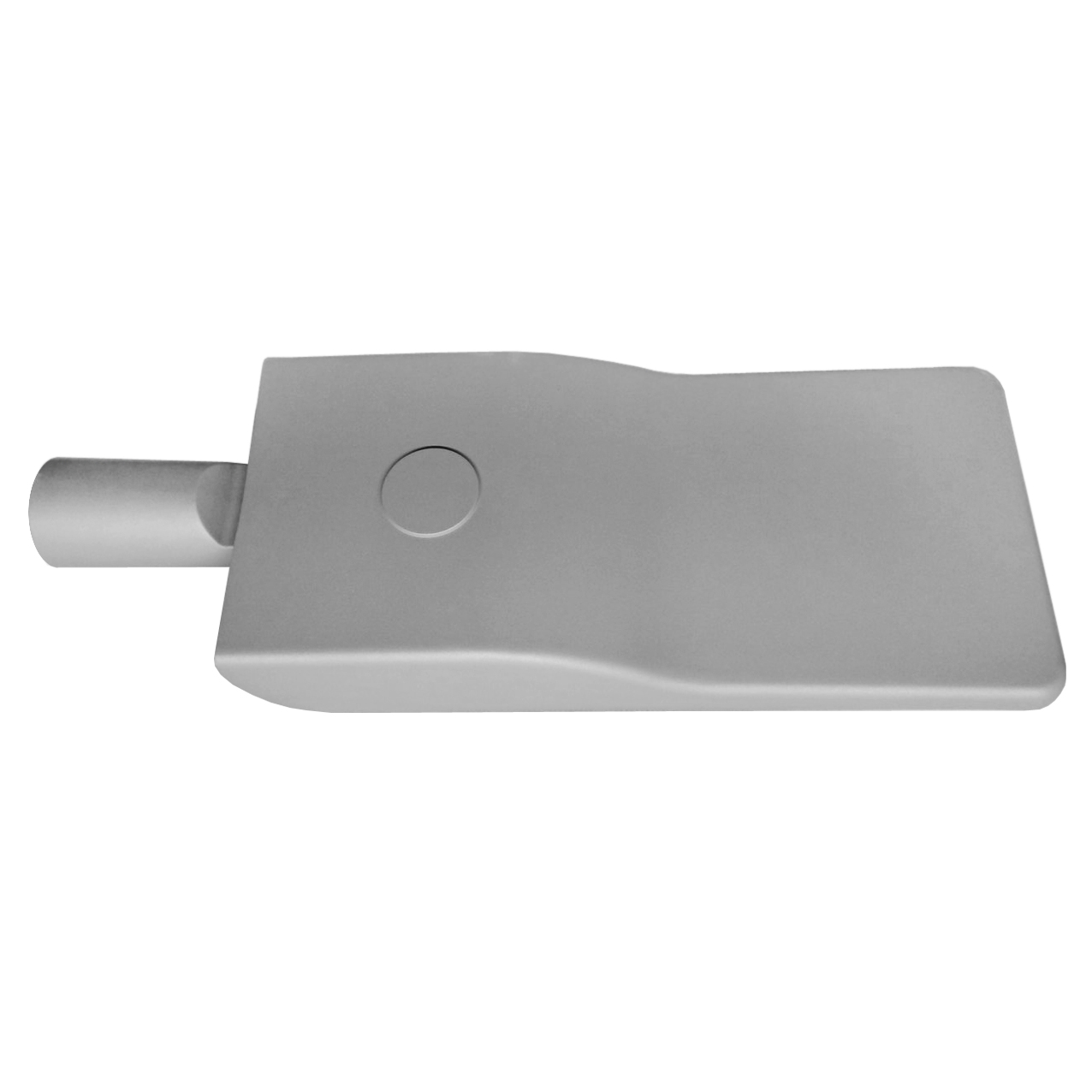

Housing material

Housing: high-pressure, die-cast aluminium powder coated, no plastic parts
Impact resistance

IK08
Ingress protection

IP66
Windage area

no more 0,138sq.m above/below and 0,0437sq.m side position

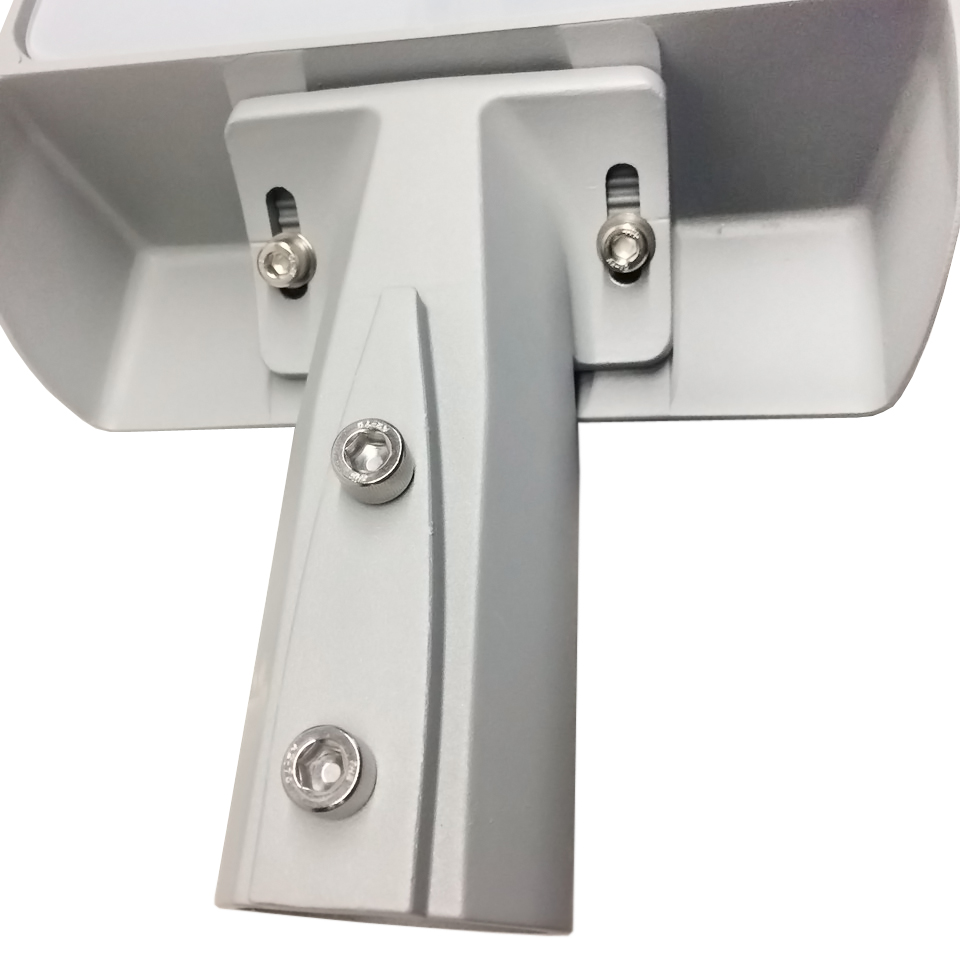

Installation options

Post top or side entry installation 40-60mm with tilt regulation 0/5/10/15 dgr
Optical cover

Extra clear toughened flat glass
Driver efficiency nominal

up to 0.92
Driver failure ratio

<10% at 50000 or 100000 hours depends on type

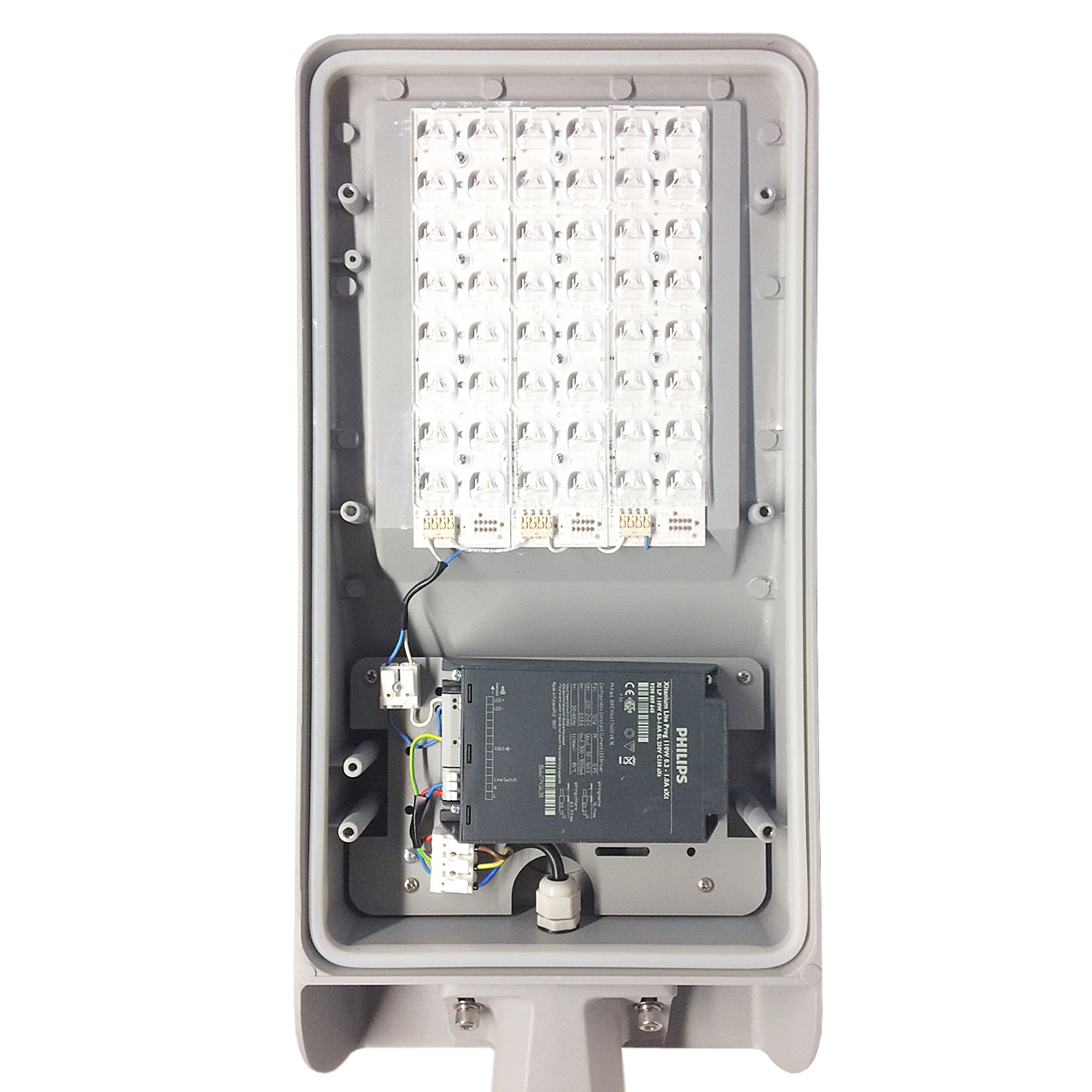

Driver type

Built in PHILIPS Xitanium Outdoor driver
Nominal input voltage range

202..254 or 198…264, depends on type
Input Frequency

50-60 Hz
LED current ripple %

<(4-30) depends on type
Mains voltage index

230 – 240 V / 50 – 60 Hz
Electrical isolation class IEC

Safety class I as a standard, II on request
Power factor nominal

up to 0.98
Power range

81-107W depending on type
Surge protection

4/6 kV standard 10kV optional
Electrical connection

0.4m cable as standard or 5….15m cable as other options on request
Maintenance

Opening with screw
Maintenance of lumen output

100000 hours – L90B10
Operating temperature range

-40…+35 C, typical for exact values
Application

• Urban road and streets • Residential roads and paths • Pedestrian crossroad
CE mark

CE marked
ROHS

ROHS complaint
