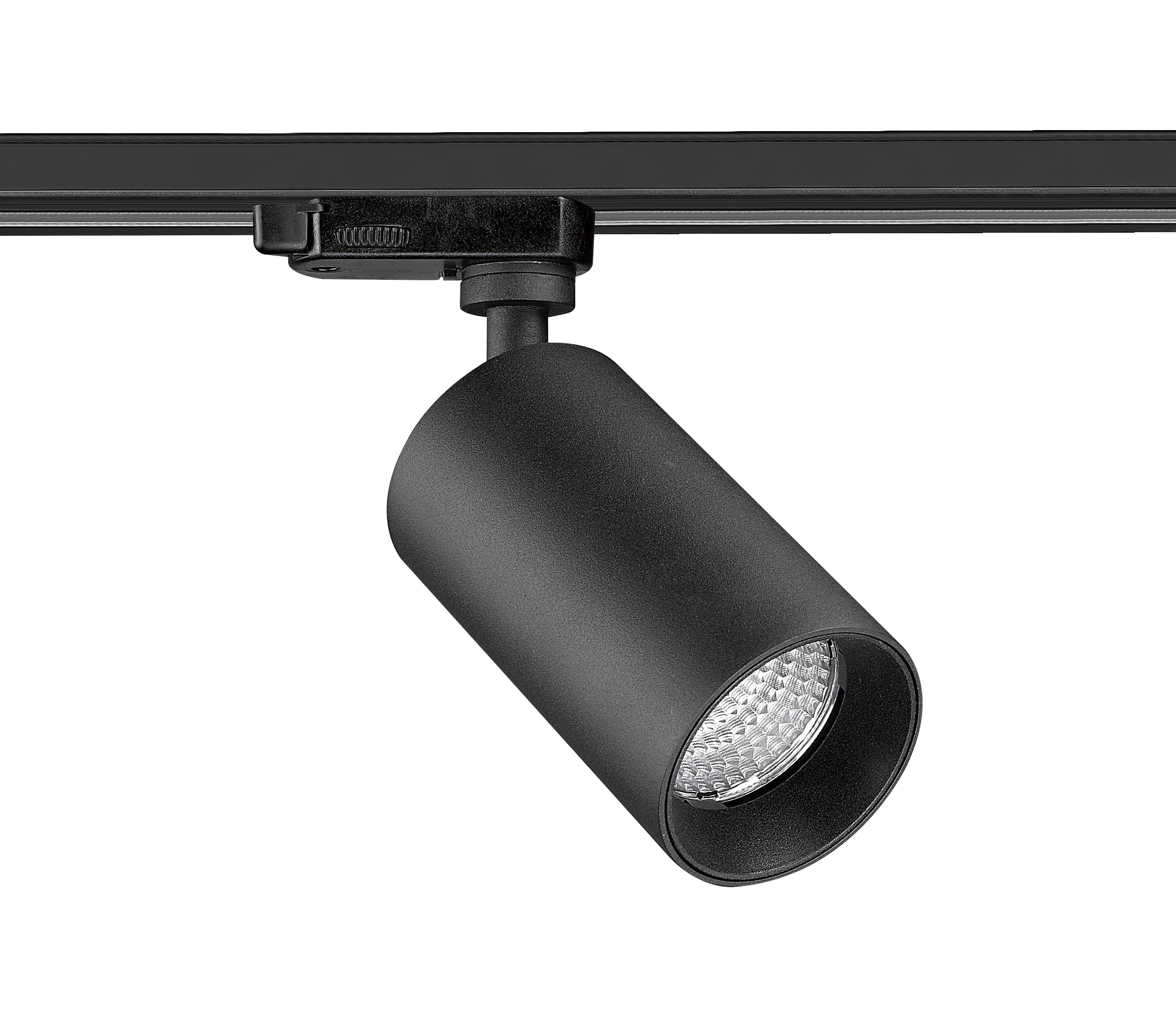

DTP 100

220 CE F

Benefits:

  • LED accent-lighting solution with a reasonable payback compared to conventional technologies
  • Suitable for food and fashion retailers
  • Available in a choice of black or white finish

Downloads:

DIAL

Photometric LDT

DIAL

Photometric IES



pdf-icon

Datasheet PDF

Categories: , , Tags: , , , ,

Description

EOC Description Colour, K Track adaptor COB Power, W FINISH
Beam Angle for the Reflector
700151452101 DTP100 LED010 9W 15DGR WH 3000 Global 3phase Philips SLM G7 9 White 15
700151452102 DTP100 LED010 9W 25DGR WH 3000 Global 3phase Philips SLM G7 9 White 25
700151452103 DTP100 LED010 9W 35DGR WH 3000 Global 3phase Philips SLM G7 9 White 35
700151452104 DTP100 LED010 9W 15DGR BK 3000 Global 3phase Philips SLM G7 9 Black 15
700151452105 DTP100 LED010 9W 25DGR BK 3000 Global 3phase Philips SLM G7 9 Black 25
700151452106 DTP100 LED010 9W 35DGR BK 3000 Global 3phase Philips SLM G7 9 Black 35

Additional information

Type

DTP
Warranty period

5 years
Light source

COB Philips SLM G7
Driver

Driver included
Input voltage

220 – 240 V
Power factor

0,95
Power consuption tolerance

+/- 10%
Initial luminous flux

970 lm (light color 3000K)
Initial LED luminaire efficacy

108 lm/W depending on the type
Luminous flux tolerance

+/- 10%
Light Color

3000 K, 2700K, 3500K, 4000K
Color Rendering Index (CRI)

80 as a standart, 90 on request
Operating temperature range

0 to +35 °C
Median useful life L80B50

50000 hours
Reflector material

Faceted anodized aluminum
Optical cover/lens finish

Clear
Body material

Aluminium
Finishing

White or Black
Installation

Track mounted
Impact resistance

IK02
Ingress protection

IP20
Electrical safety

Class I or II
Application

• Shops
• Showrooms
• Meeting rooms
• Circulation areas
• Hospitality
