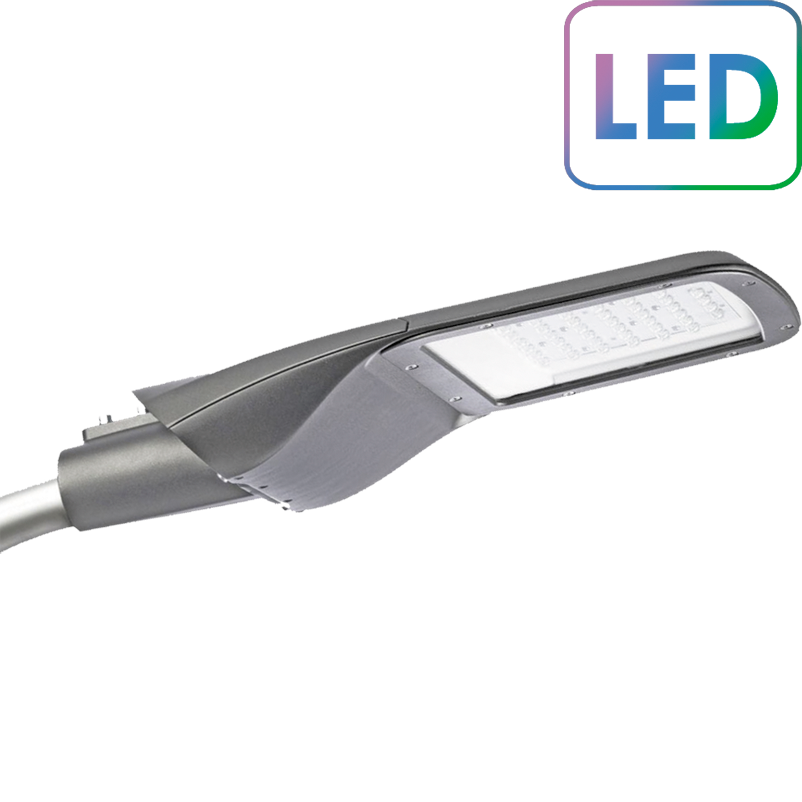

DKS 352 WAVE
 |
 |
 |
 |
 |
 |
Benefits:
Driver:

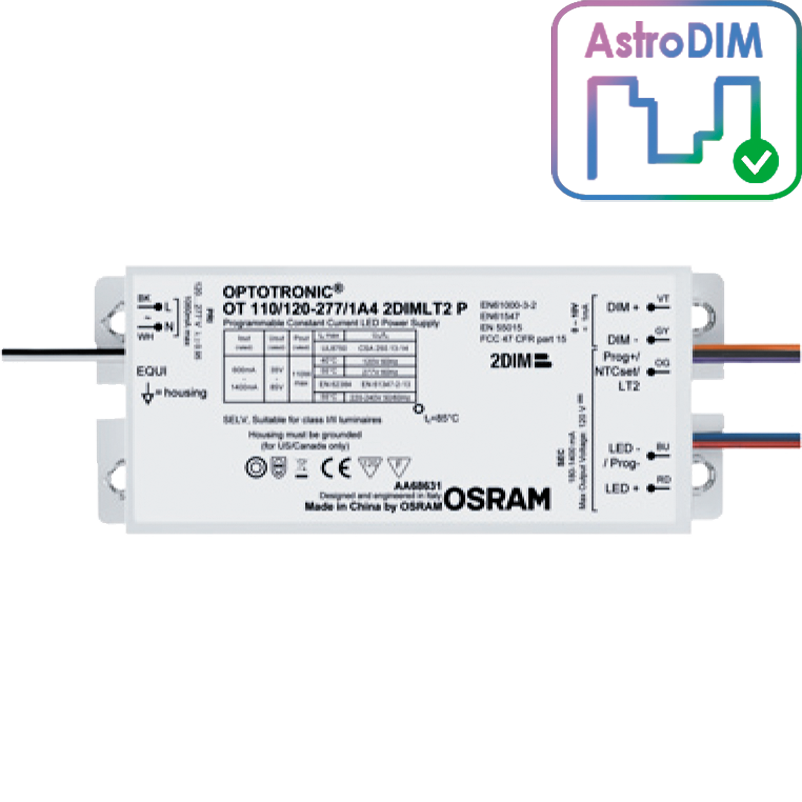

OSRAM AstroDIM
Downloads:
|
Code |
Type |
Power, W |
Initial luminous flux |
Color, K |
Weght, kg |
|---|---|---|---|---|---|
|
600151421001 |
DKS 352 LED35W Standart 740 I DW 48-60 |
35 |
3600 |
4000 |
6,5 |
|
600151421003 |
DKS 352 LED60W Standart 740 I DW 48-60 |
60 |
6100 |
4000 |
6,5 |
|
600151421005 |
DKS 352 LED80W Standart 740 I DW 48-60 |
80 |
8800 |
4000 |
6,5 |
– aviable light color 2700 – 5000 K
– driver built-in overvoltage protection – 6kV
| Type | DKS 352 WAVE |
|---|---|
| Light source | LED module |
| Driver | Driver included OSRAM AstroDIM |
| Mains voltage index | 220 – 240 V / 50 – 60 Hz |
| Power | 35-80W depending on type |
| Luminaire efficacy | >0,95 |
| Luminous flux | 3600-8800 lm depending on type |
| Color rendering index | 75 – 80 |
| Light Color | 3000 – 5000К |
| Surge protection | 6 kV |
| Maintenance of lumen output - L80B10 | 25°C – 48000 hours |
| Maintenance | Opening with screw |
| Optic | Wide beam |
| Optical cover | Glass, flat |
| Operating temperature range | -40 to +40 °C |
| Body material | Housing: high-pressure, die-cast aluminium |
| Installation | Side-entry mounting: lateral entry Ø48/60mm |
| Color | Grey |
| Impact resistance | IK08 |
| Ingress protection | IP65 for the whole luminaire (driver compartment IP65, LED compartment IP66) |
| Electrical safety | Class I |
| Application | • Urban road and streets |
