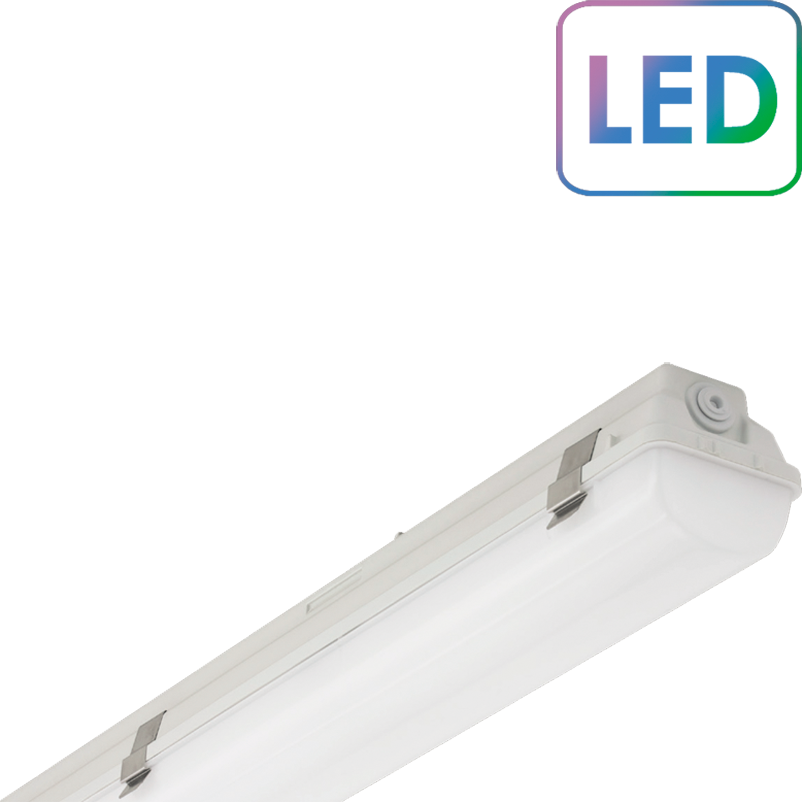

DCW-111

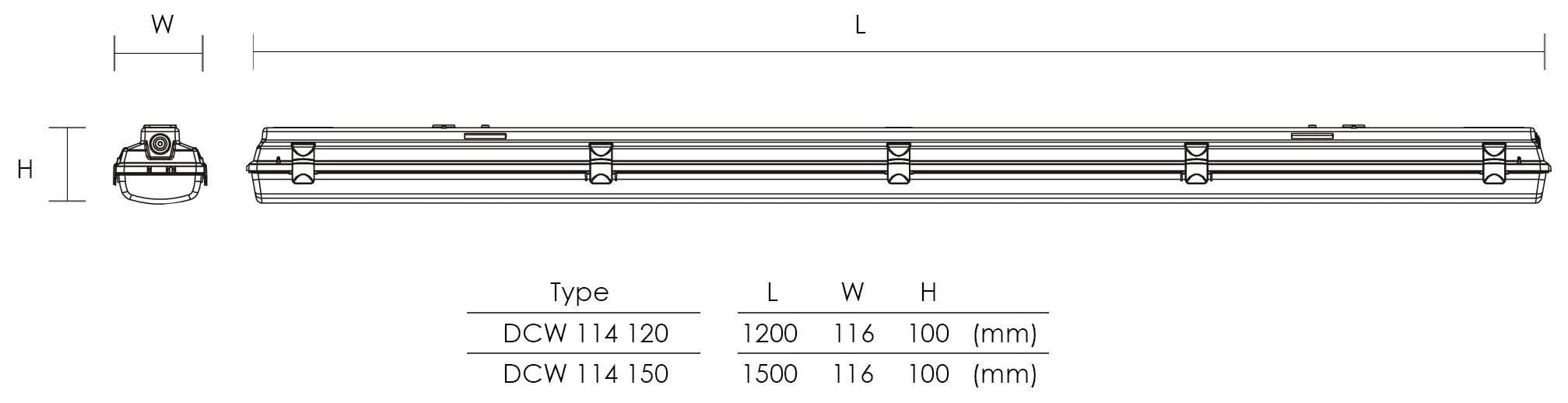

DCW-114-2

DCW 114

Benefits:

Up to 50% energy savings compared with TL-D
Reliable LED technology – maintenance-free
Direct replacement for conventional waterproof luminaires in terms of light performance, installation flexibility and length

Downloads:

Photometric IES

Photometric LDT

Chemical resistance

Brochure

SKU: Order Categories: Indoor Luminaires, Waterproof Luminaires, Low-Bay Tags: General lighting, Industrial areas, Parking garages, Warehouses

Description
Additional information

Description

Code	Type	Power, W	Initial luminous flux	Color, K	Diffuser	Ingress protection code
700151252011	DCW 114-120 LED080 52W High flux	58	8000	4000	Opal	IP 65
700151252012	DCW 114-150 LED100 66W High flux	66	10000	4000	Opal	IP 65
700151252013	DCW 114-150 LED120 88W High flux	88	12000	4000	Opal	IP 65
700151252014	DCW 114-120 LED145 108W High flux	108	14560	4000	Opal	IP 65
700151252019	DCW 114-150 LED190 125W High flux	125	19000	4000	Opal	IP 65

700151252011 DCW 114 120 LED080 52W HF
700151252012 DCW 114 150 LED100 66W HF

MCB type	Rate	Quantity
B	10A	≤15
B	13A	≤19
B	16A	≤24
B	20A	≤30
B	25A	≤37
C	10A	≤24
C	13A	≤32
C	16A	≤40
C	20A	≤49
C	25A	≤62

700151252013 DCW 114 150 LED120 88W HF

MCB type	Rate	Quantity
B	10A	≤11
B	13A	≤14
B	16A	≤18
B	20A	≤22
B	25A	≤28
C	10A	≤18
C	13A	≤24
C	16A	≤30
C	20A	≤37
C	25A	≤46

700151252014 DCW 114 120 LED145 108W I HF
700151252019 DCW 114 150 LED190 125W HF

MCB type	Rate	Quantity
B	10A	≤7
B	13A	≤9
B	16A	≤12
B	20A	≤15
B	25A	≤18
C	10A	≤12
C	13A	≤16
C	16A	≤20
C	20A	≤24
C	25A	≤31

Additional information

Type	DCW 114
Light source	LED module Philips
Driver	Driver Philips included
Input voltage	230 – 240 V
Power factor	0,95
Power consumption	58 – 125 W
Initial luminous flux	8000 – 19000 lm depending on type
Initial LED luminaire efficacy	116 – 150 lm/W depending on type
Light Color	Neutral White – 4000 K
Color Rendering Index (CRI)	> 80
Maintenance of lumen output - L80B20	50000 hours
Optical cover	Injection molded acrylic (PMMA) As option injection molded polycarbonate (PC)
Body material	Flame retardant glass-fibre reinforced polyester
Color	Light grey
Impact resistance	IK05, IK10 as option
Ingress protection	IP65, (IP66, IP67 as option)
Electrical safety	Class II
Application	• Parking garages • Warehouses • General lighting
