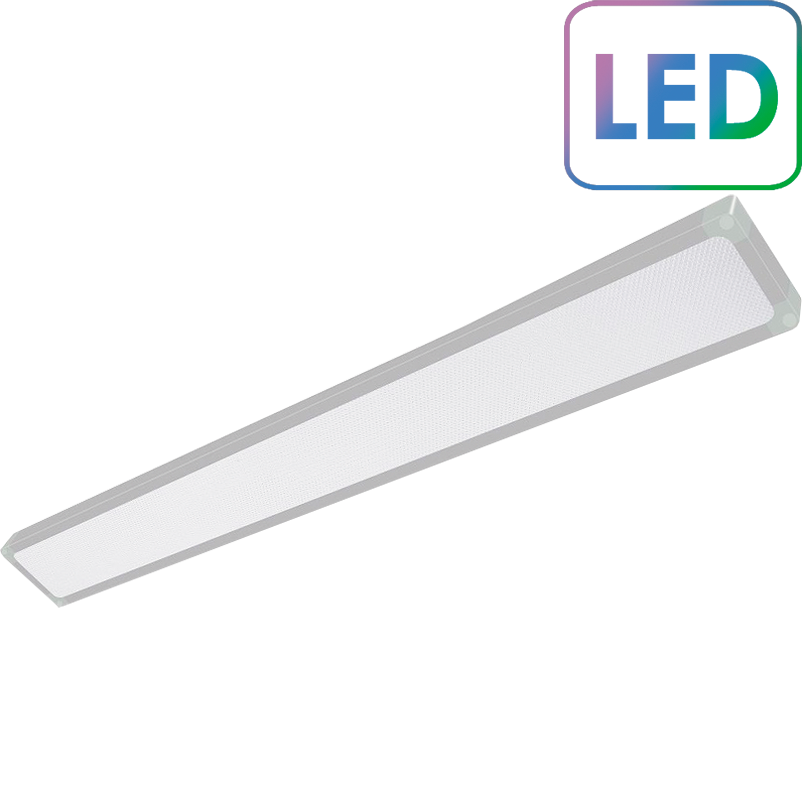

DCO-117

DCO117

DCO 117

ip40

ik02

220

Benefits:

Operational cost saving, up to 40% savings

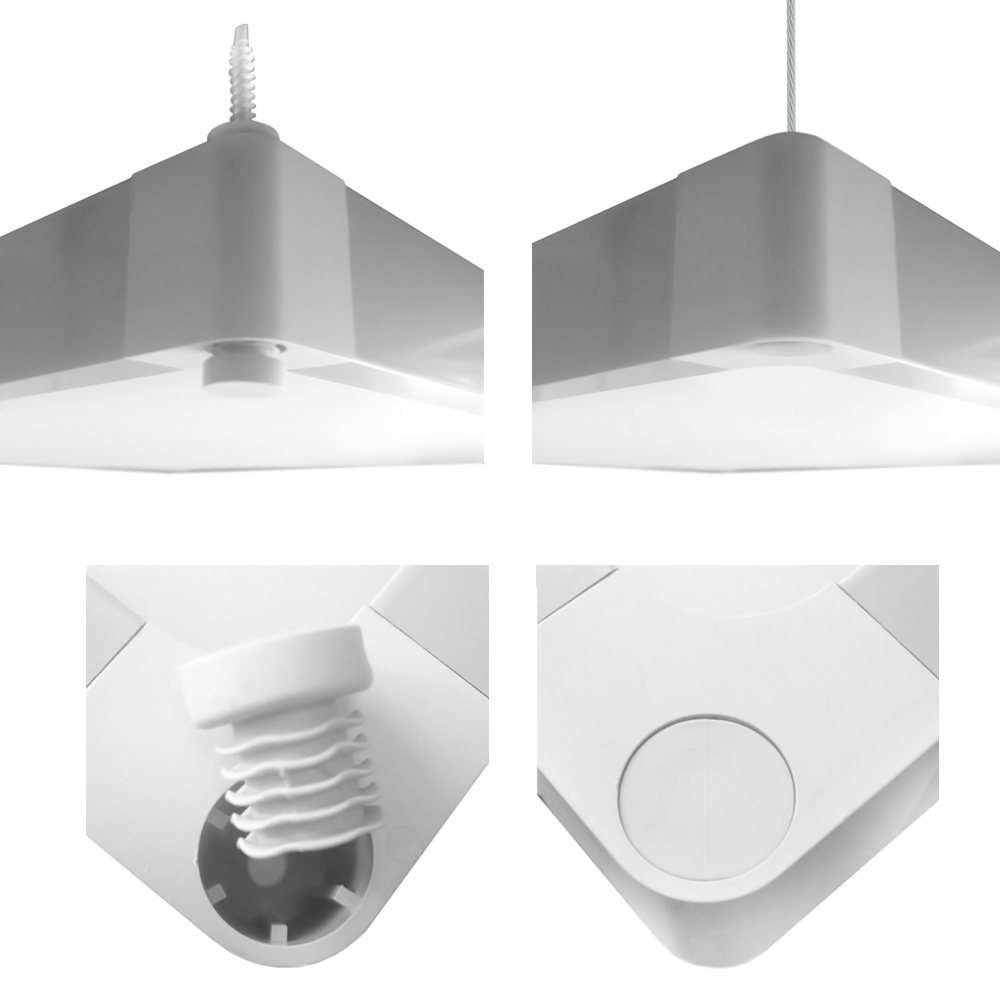

Mounting options: celling, on the mounting profile, on suspensions, T-bar celling

Downloads:

Photometric IES

SKU: Order Categories: Indoor Luminaires, Surface mounted Tags: Cell offices, Circulation areas, Clean rooms, Healthcare, Hospitality, Meeting rooms, Offices, Open-plan

Description
Additional information

Description

Code	Type	Power, W	Initial luminous flux	Color, K	Diffuser	Ingress protection code
700151264080	DCO 117 38 Opal 3000	38	2950	3000	Opal	IP40
700151264081	DCO 117 38 Opal 4000	38	3200	4000	Opal	IP40

DCO 117 are available with IP54 protection
Versions with DALI control are available

Additional information

Type	DCO 117
Light source	LED module
Driver	Driver included
Input voltage	220 to 240 V
Power factor	0,95
Power consumption	38 W
Initial luminous flux	2950 – 3200 lm depending on type
Initial LED luminaire efficacy	86 – 94 lm/W depending on type
Light Color	Warm White – 3000 K Neutral White – 4000 K
Color Rendering Index (CRI)	> 80
Operating temperature range	0 to +40 °C
Optical cover	Opal diffuser
Body material	Aluminium profile
Color	White
Impact resistance	IK02
Ingress protection	IP40
Electrical safety	Class I

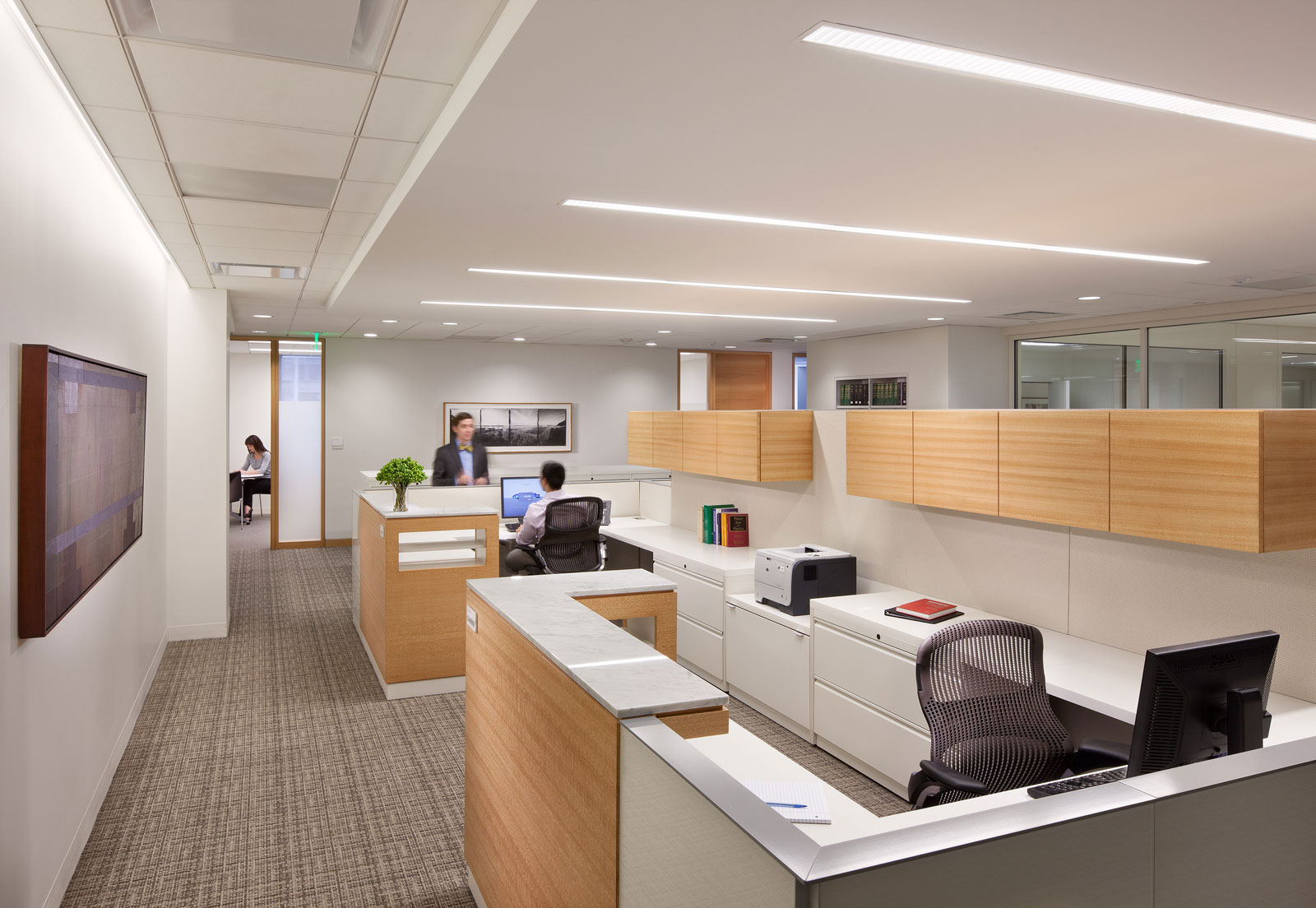

Application	• Offices • Open-plan • Meeting rooms • Cell offices • Circulation areas • Healthcare • Hospitality • Clean rooms
