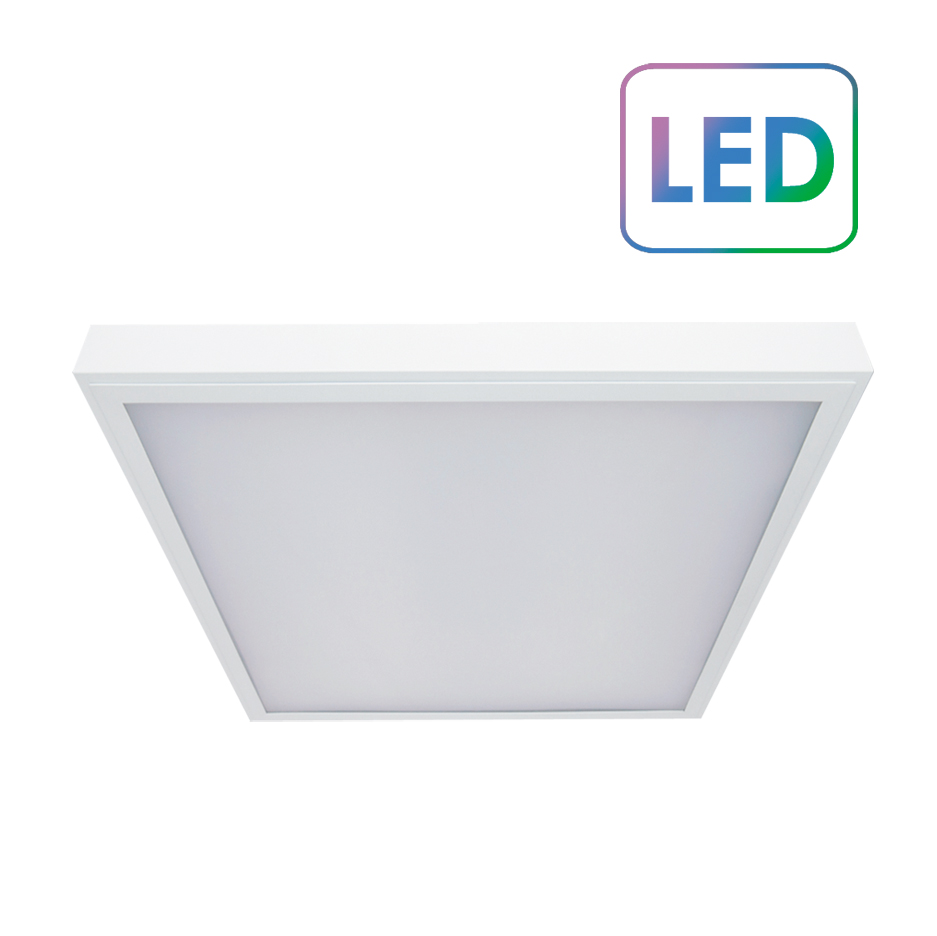

DBO 111

Description

Code	Type	Power, W	Initial luminous flux	Initial LED luminaire efficacy lm/wt	Color, K	Ingress protection code
700151311005	DBO 111 LED 38W OPAL 840 I	38	3750	98	4000	IP20
700151311008	DBO111 LED 38W Opal 840 DALI	38	3750	98	4000	IP20
700151311009	DBO111 LED 38W Opal 840 EMG3H1	38	3750	98	4000	IP20

Type	DBO 111
Celling type	Exposed T-bar ceiling, suspended, surface
Light source	LED module
Driver	Philips CertaDrive 40W 360mA 110V 230V or Xitanium 36W 0.12-0.4A 115V 230V depending on type, included
Input voltage	220 to 240 V
Power factor	0,95
Power consumption	38 W depending on type
Initial luminous flux	3800 lm depending on type
Initial LED luminaire efficacy	100 lm/W depending on type
Light color	Warm White – 3000 K on request Neutral White – 4000 K as a standard Cool White – 6500 K on request
Color Rendering Index (CRI)	> 80
Operating temperature range	0 to +40 °C
Optical cover	Opal diffuser
Body material	Steel
Color	White
Installation	Individual; lay-in in exposed ceiling grids Suspended, surface
Impact resistance	IK02
Ingress protection	IP20
Electrical safety	Class I
Application	• Offices • Open-plan • Meeting rooms • Cell offices • Circulation areas • Healthcare • Hospitality
