Code
|
Type
|
Power consuption
W |
Initial luminous
flux lm |
Color, K
|
Weight kg
|
IP
|
IK
|
|
DPS355 LED042 40W PC I 740 100
|
40
|
4200
|
4000
|
13
|
66
|
08
|
|
|
DPS355 LED063 60W PC I 740 100
|
60
|
6300
|
4000
|
13
|
66
|
10
|

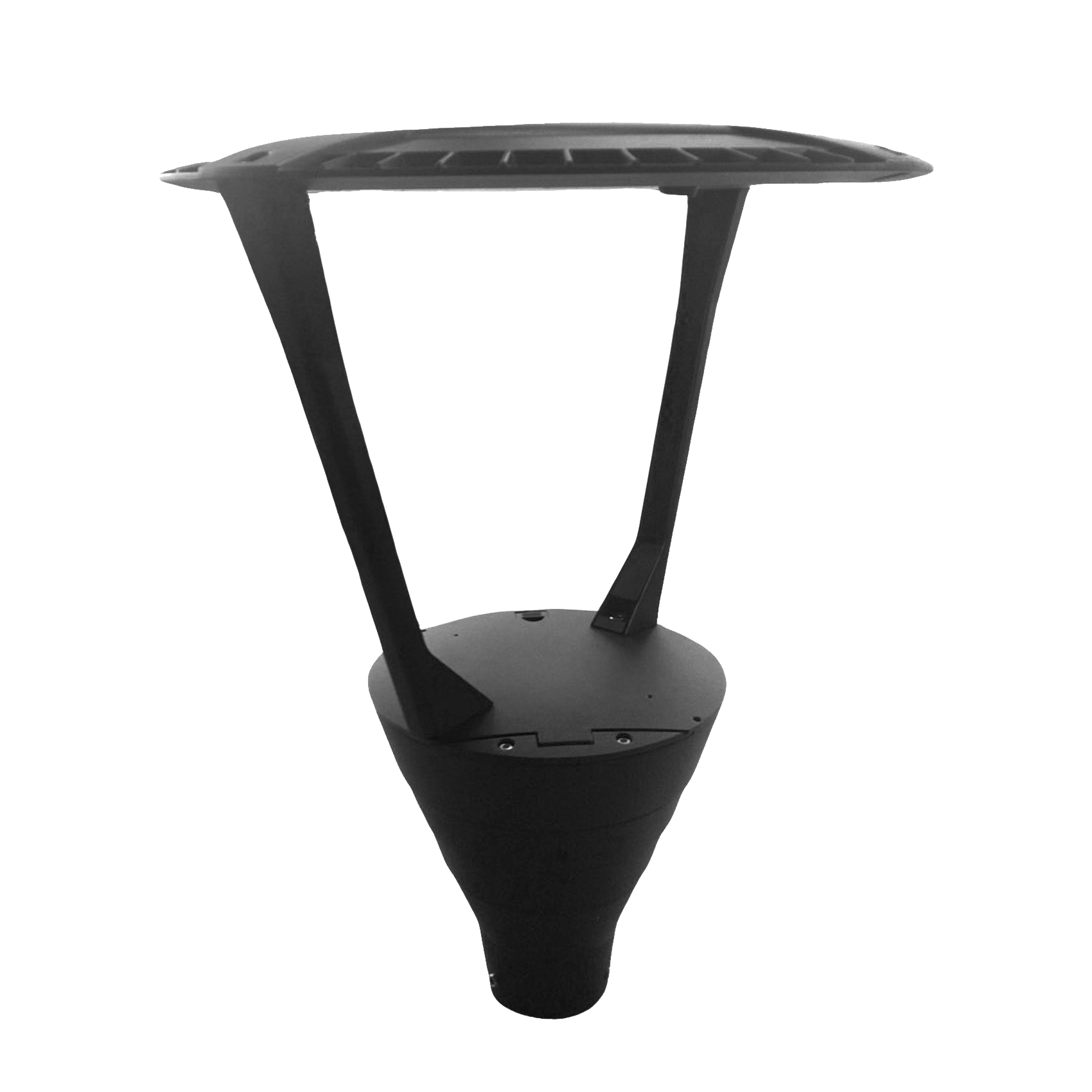

| Product type | BILLUND |
|---|---|
| Light source | LED module |
| Driver | Driver Philips included |
| Mains voltage index | 230 – 240 V / 50 – 60 Hz |
| Power range | 40 – 60 W depending on type |
| Luminaire efficacy | >0,96 |
| Luminaire lumen output range, lm | 4000 – 7750 lm depending on type |
| Color rendering index, CRI | >80 |
| CCT | Neutral White – 4000 K as a standard |
| Maintenance of lumen output | 100000 hours – L80F10 |

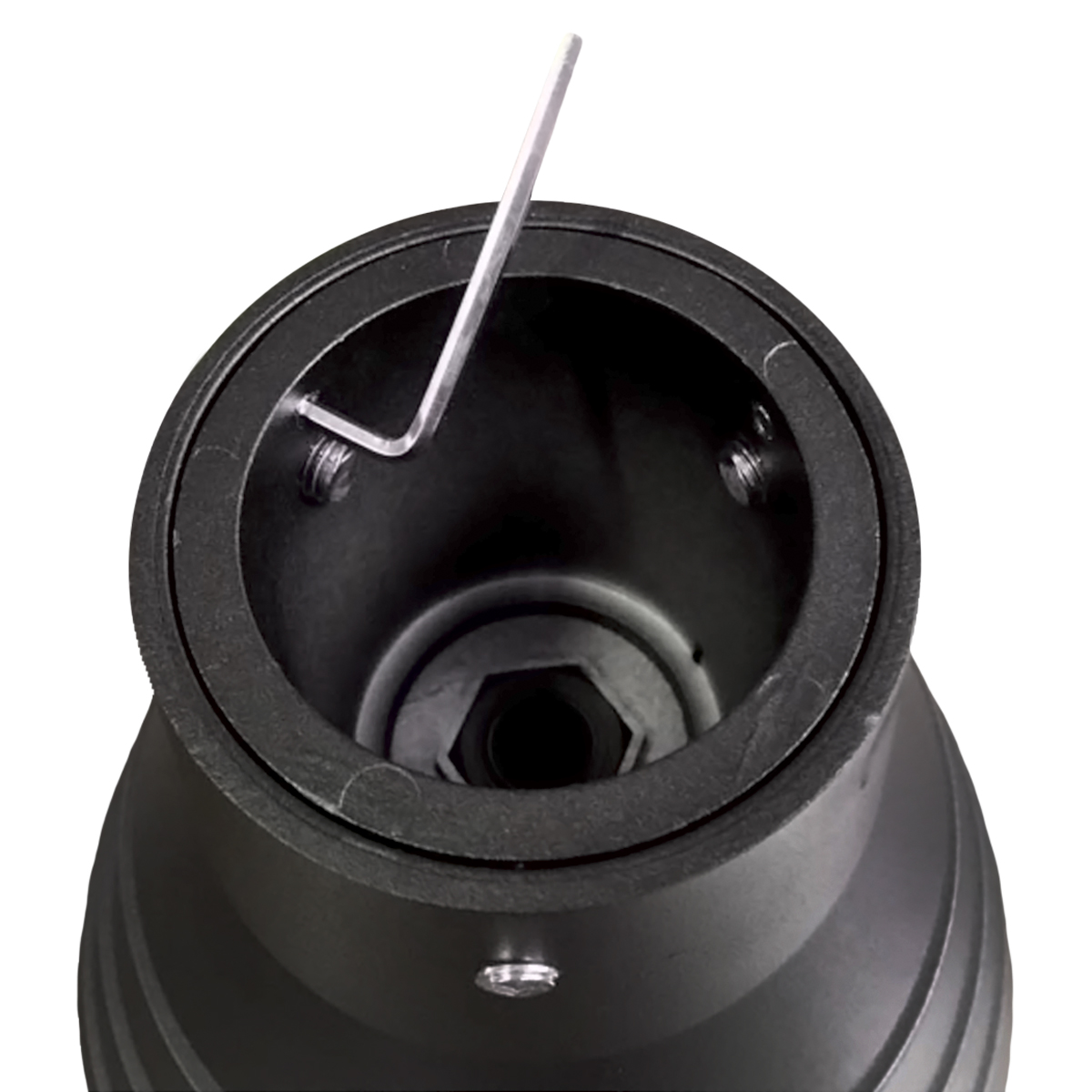

| Maintenance | Opening with screw |
| Optic | Wide beam |
| Colour | Grey RAL7035 |
| Impact resistance | IK09 |
| Ingress protection | IP66 |
| Electrical isolation class IEC | Class I |
| Application | • Parks • Squares • Boulevards • Embankments • Recreation areas |
